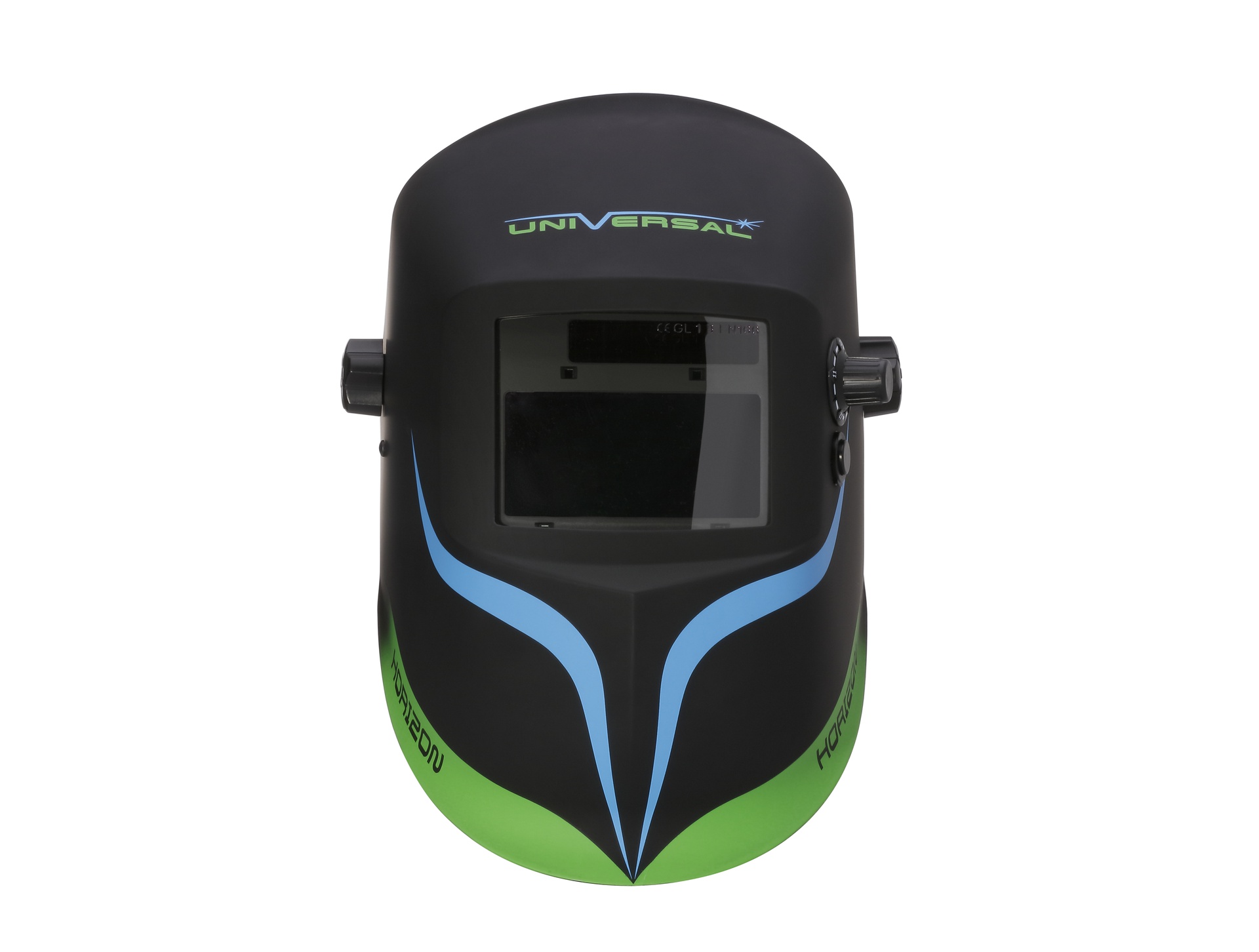

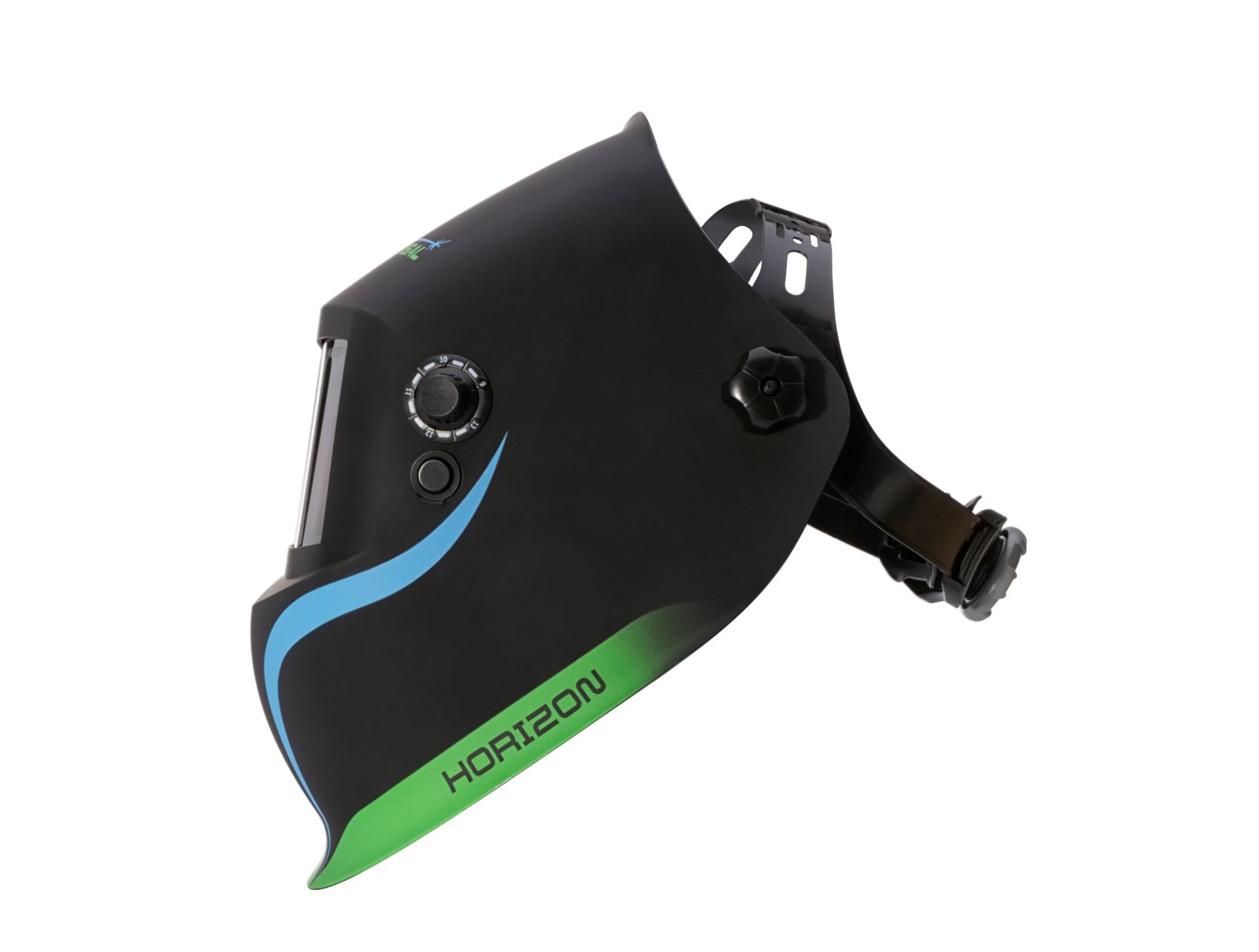

HORIZON 9-13 HELMET (STANDARD)

https://www.universalppe.co.uk/web/image/product.template/9461/image_1920?unique=5cdf786
  • Logo
  • Colour
  • Size

This combinations does not exist.




`

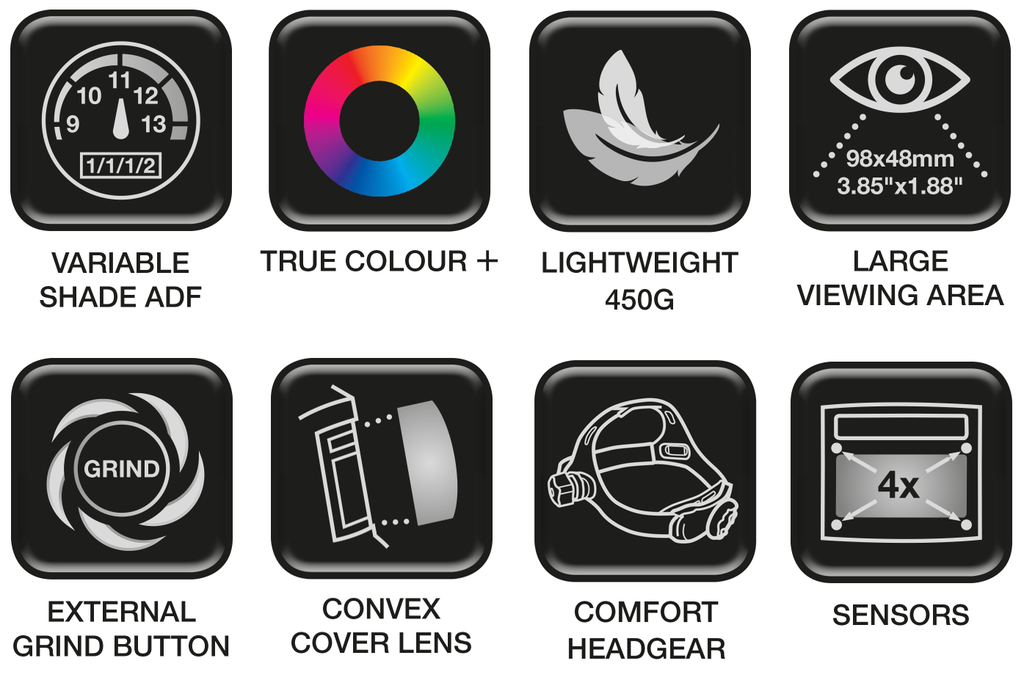

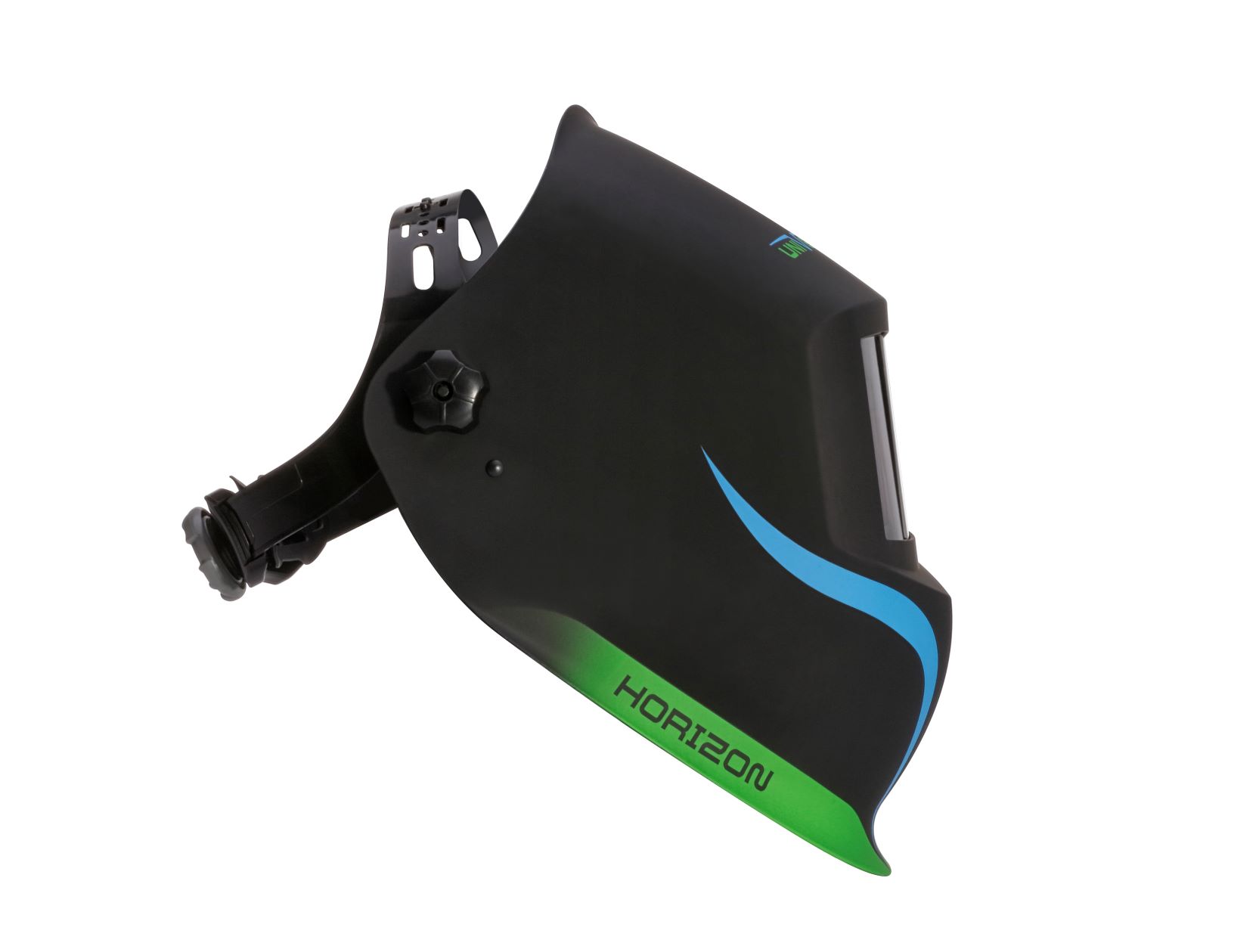

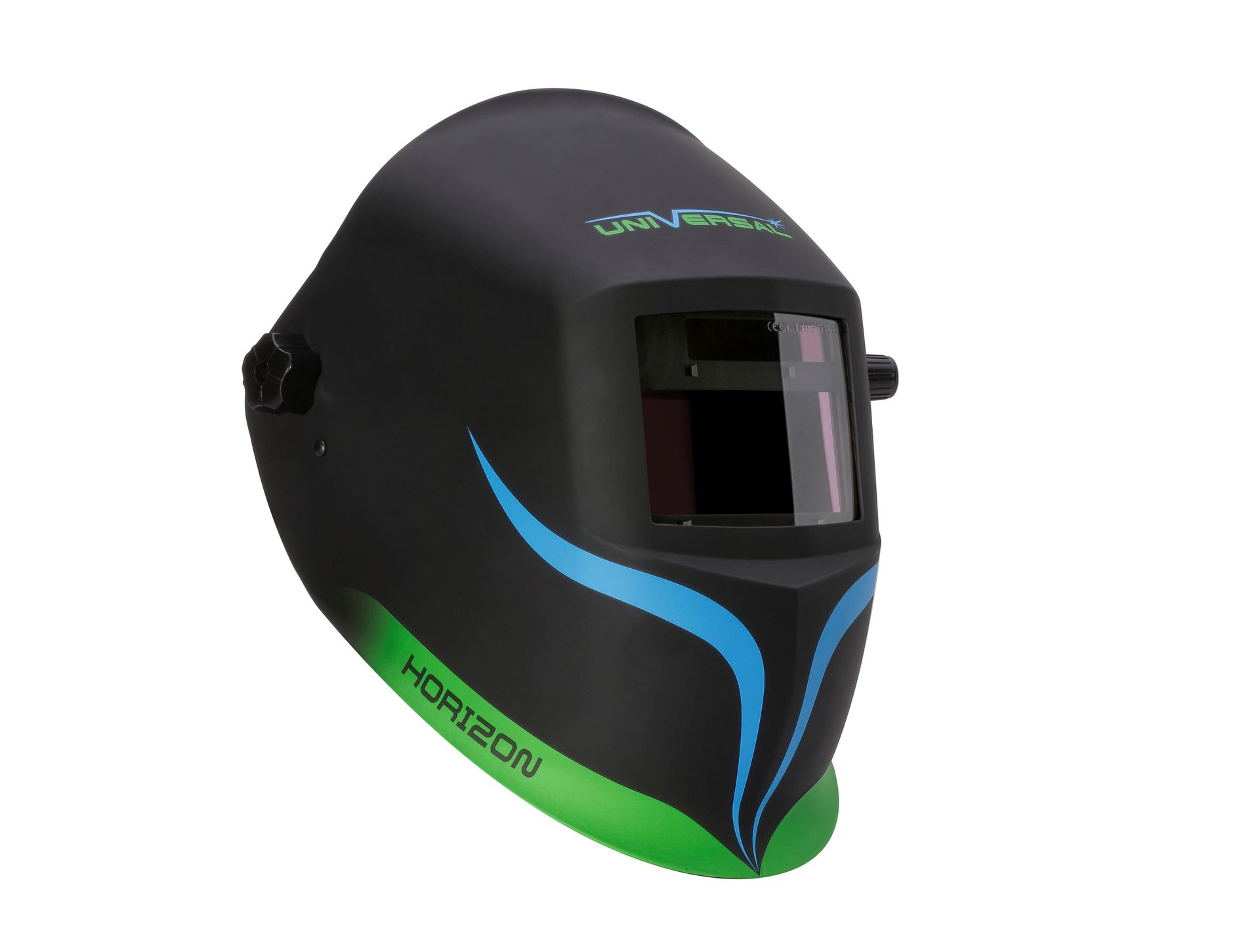

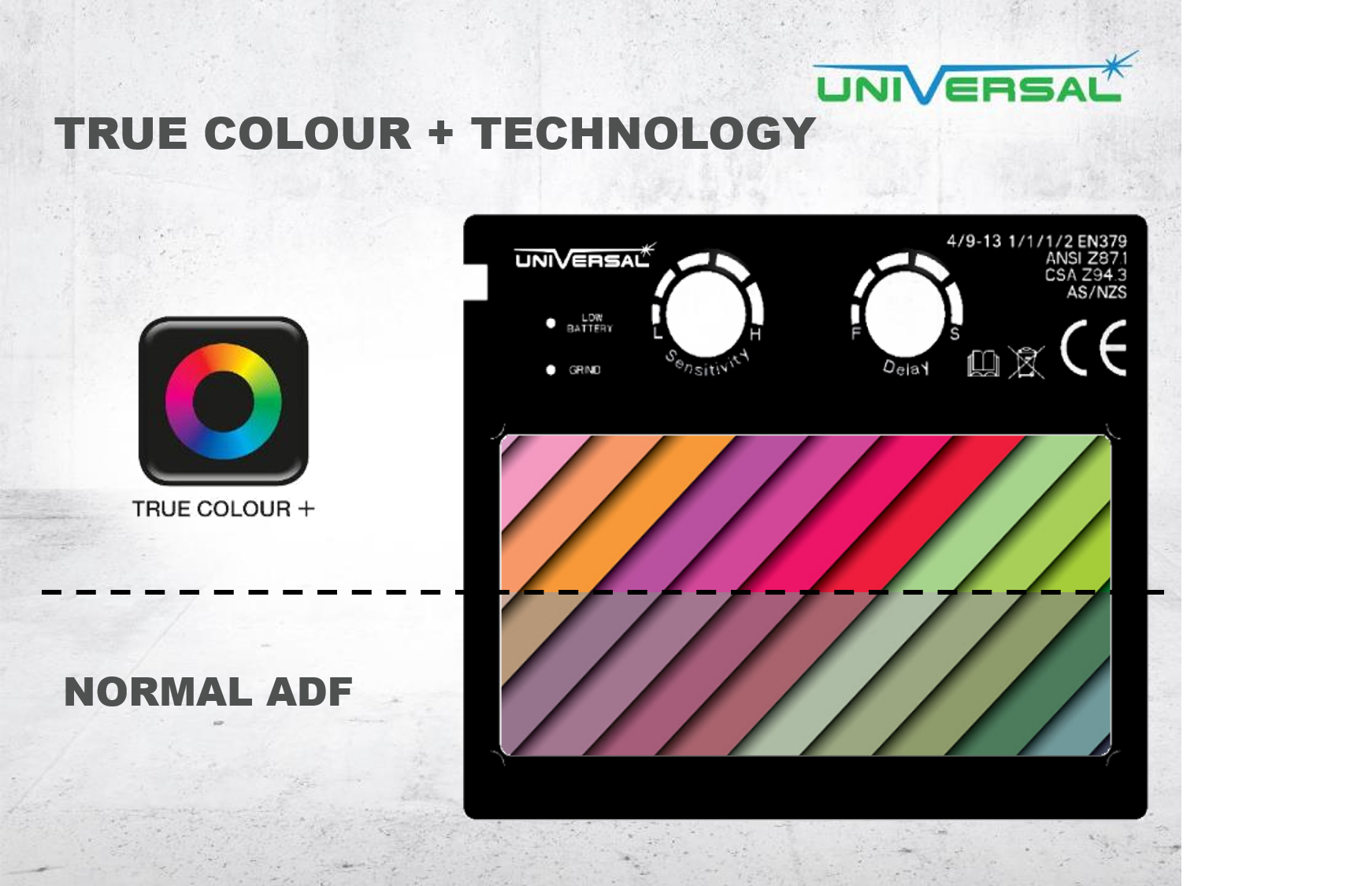

The Horizon helmet has been designed to offer ideal functionality, performance and comfort whilst also offering exceptional reliability to all types of welders. The welding ADF lens offers a high clarity of view, resulting in an excellent optical quality utilising the latest ADF technology. This, coupled with our latest true colour + technology offers a superior view of the welding environment.

Cartridge Dimensions
110(W) x 90(H) x 9(T) mm
Viewing Area
98 x 48mm (3.85"x 1.88")
Lens Shade
DIN 9-13 (open state 4)
Power Supply
Solar Cells Batteries, 3V Lithium Batteries (CR2450 1EA, Replaceable)
Sensors
4
Switch Time @ 23C
0.1 - 0.2 ms
Optical Class
1/1/1/2
Standards
DIN EN379, AS/NZS 1338.1, ANSI Z87.1, CSA Z94.3
Delay Control Time
0.1 - 1.9 sec
Sensitivity / Delay Control
Internal
Lens Control
Auto-ON, Auto-OFF 15-20 minutes (when not on welding)

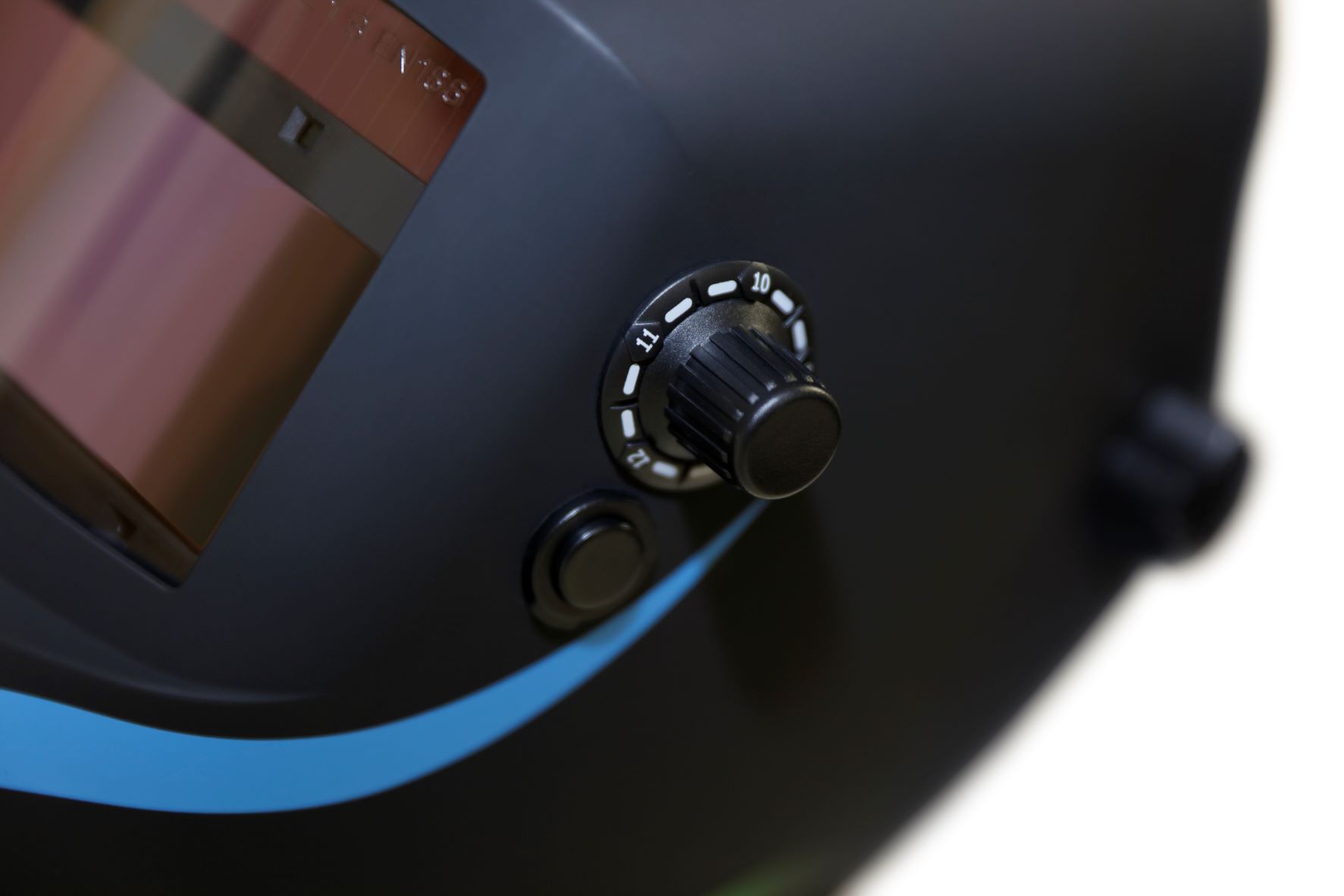

Grind Mode
Grind Mode selected via external switch
Battery Voltage Indicator
Yes
Operating Temperature
-5ºC to + 55ºC
Storage Temperature
-20ºC to + 55ºC
Shell Material
Nylon
Weight
490g
