Replacement ADF cartridge for Quantum helmet. not including batteries
Optical Class
1/1/1/1
Viewing Area
107 x 75 mm (4.21" x 2.95")
Cartridge Size
156 x 123 x 33 mm (6.14" x 4.84" x 1.30")
Arc Sensor
4
Light State / Grind State
DIN 4
Cutting Shade
Shade No. from 5 to 8
Welding Shade
Shade No. from 9 to 13
Shade Control
Internal, Digital Display Control
Power On I Off
Automatic On / Off
Sensitivity Control
Low ~ High, Digital Display Control
UV / IR Protection
Up to Shade DIN16 at all times
Power Supply
Solar cell. Battery replaceable, 2 x CR2450 lithium battery
Switching Time
1/25,000 s. from Light to Dark
Grinding
Yes
Delay (Dark to Light)
0.1 ~ 1.0 s, Digital Display Control
Low Amperage TIG Rated
>2 amps (DC); > 2 amps (AC)
Operating Temp
- 5 °C ~ +55 °C (23 °F ~ 131 °F)
Storing Temp
- 20 °C ~ +70 °C (- 4 °F ~ 158 °F)
ADF Weight
192 g
Application Range
Stick Welding (SMAW); TIG DC∾ TIG Pulse DC; TIG Pulse AC; MIG/MAG/CO2; MIG/MAG Pulse; Plasma Arc Cutting (PAC); Plasma Arc Welding (PAW); Air Carbon Arc Cutting (CAC-A); Oxyfuel Gas Welding (OFW); Oxygen Cutting (OC); Grinding

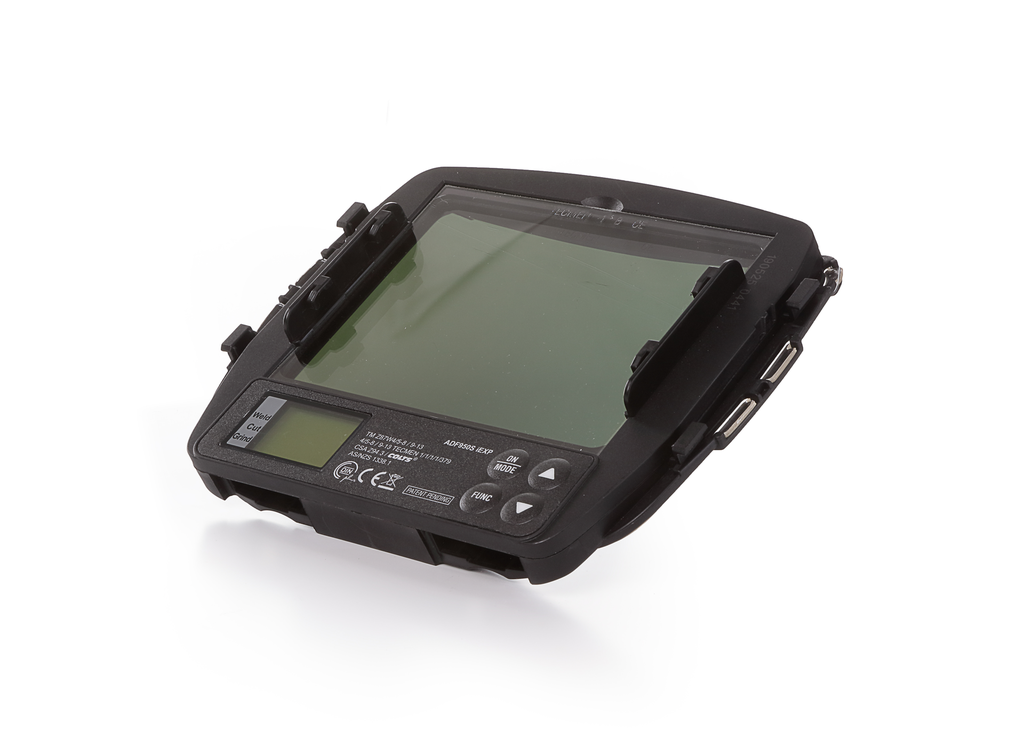

QUANTUM HELMET AUTO DARKENING FILTER
`
Replacement ADF cartridge for Quantum helmet. not including batteries
Optical Class
1/1/1/1
Viewing Area
107 x 75 mm (4.21" x 2.95")
Cartridge Size
156 x 123 x 33 mm (6.14" x 4.84" x 1.30")
Arc Sensor
4
Light State / Grind State
DIN 4
Cutting Shade
Shade No. from 5 to 8
Welding Shade
Shade No. from 9 to 13
Shade Control
Internal, Digital Display Control
Power On I Off
Automatic On / Off
Sensitivity Control
Low ~ High, Digital Display Control
UV / IR Protection
Up to Shade DIN16 at all times
Power Supply
Solar cell. Battery replaceable, 2 x CR2450 lithium battery
Switching Time
1/25,000 s. from Light to Dark
Grinding
Yes
Delay (Dark to Light)
0.1 ~ 1.0 s, Digital Display Control
Low Amperage TIG Rated
>2 amps (DC); > 2 amps (AC)
Operating Temp
- 5 °C ~ +55 °C (23 °F ~ 131 °F)
Storing Temp
- 20 °C ~ +70 °C (- 4 °F ~ 158 °F)
ADF Weight
192 g
Application Range
Stick Welding (SMAW); TIG DC∾ TIG Pulse DC; TIG Pulse AC; MIG/MAG/CO2; MIG/MAG Pulse; Plasma Arc Cutting (PAC); Plasma Arc Welding (PAW); Air Carbon Arc Cutting (CAC-A); Oxyfuel Gas Welding (OFW); Oxygen Cutting (OC); Grinding
