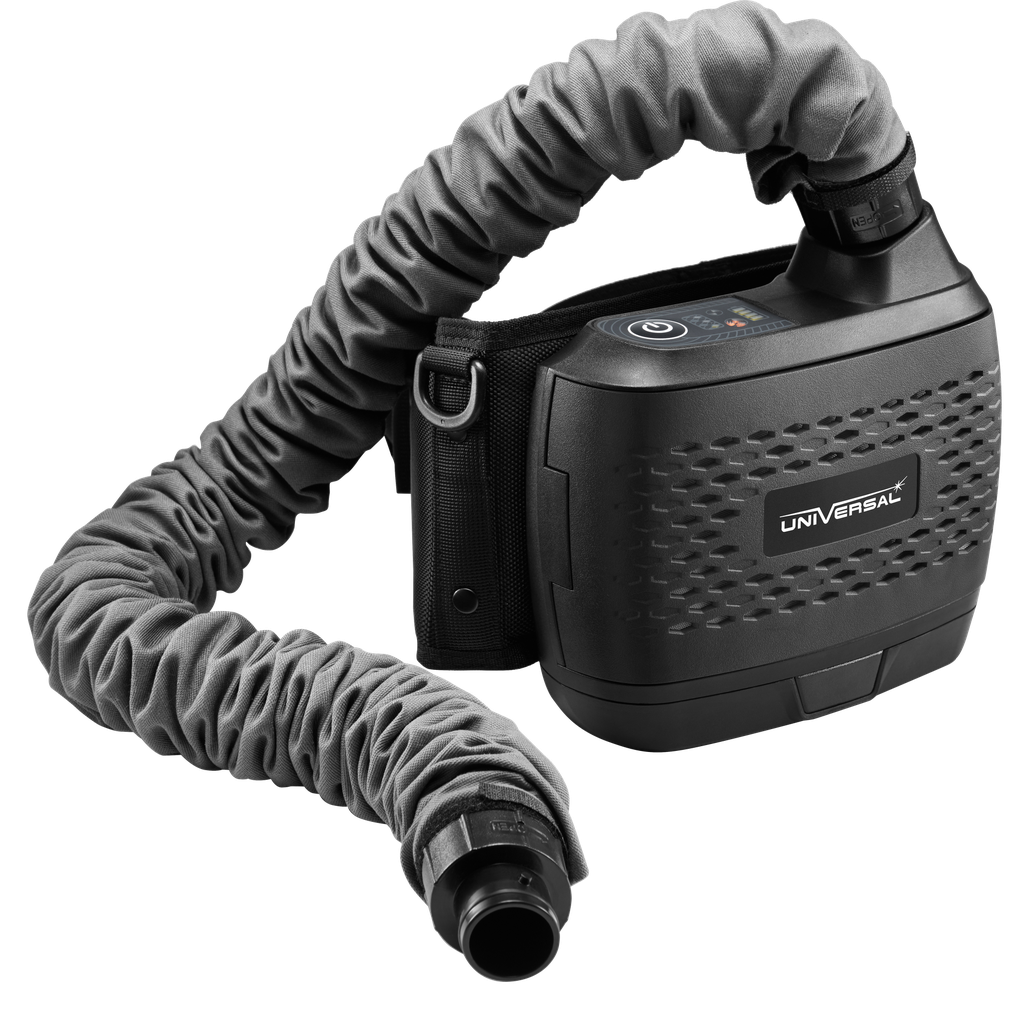

The Quantum Air PAPR (Powered Air Purifying Respirator) system combined with the Quantum helmet, offers heavy duty protection from welding fume and dust when welding, gouging and grinding. The unit features the latest in PCB Board technology, allowing the welder to adjust the air flow from 170 L/min to 210 L/min to suit the environment and

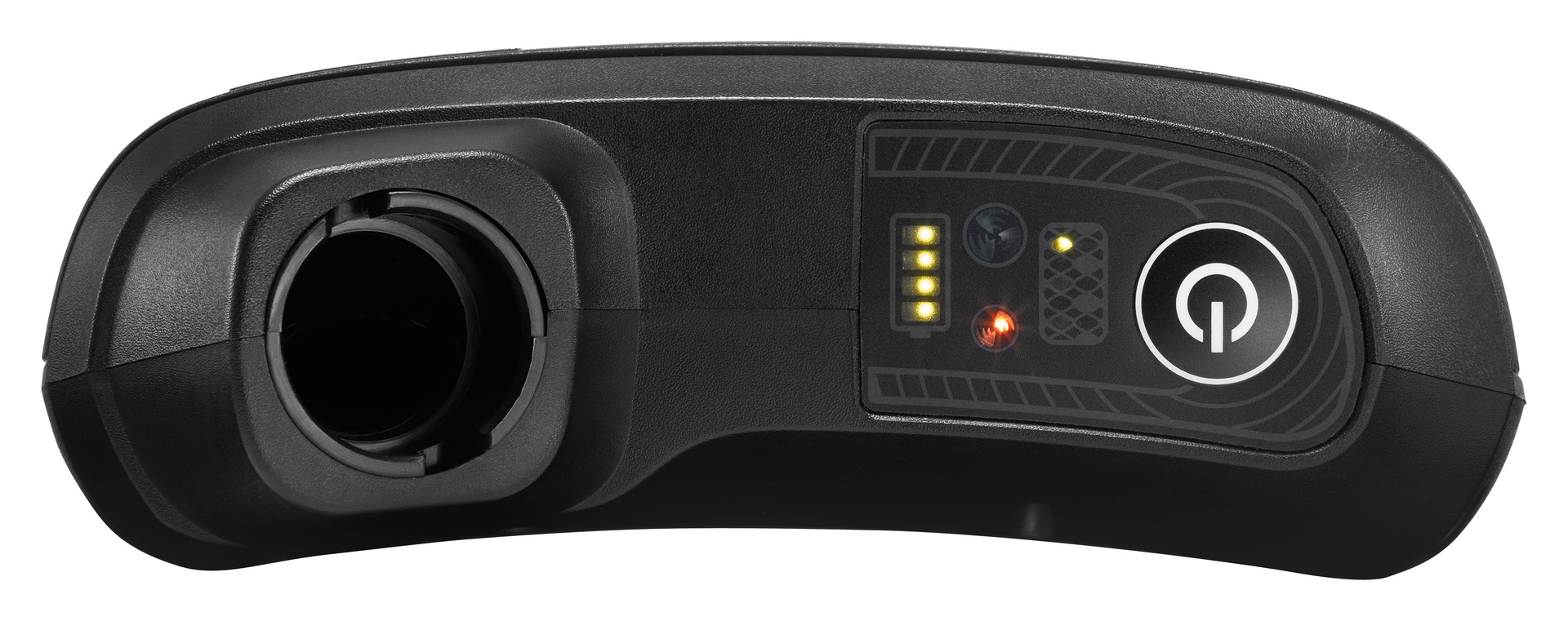

application. This is highlighted by an LED airflow indicator on top of the unit. The Quantum Air is equipped with audio and visual blocked filter and low battery alarms, offering extra safety for the welder.

- User adjustable air flow 170/210 L/min – 2 stages
- Li Ion battery pack (up to 9hr duration @ 170L/min)
- Fast charging Lithium-Ion battery (1 hour)
- P3 filter and pre-filter
- Intelligent charger (EU & UK pins)
- Audio and Visual ‘’vibration’’ blocked filter and low battery alarms
- LED air flow indicator
- Supplied with ‘comfort pad’ and shoulder harness

Download Data Sheet
UNIVERSAL - Quantum Air 2022.pdf
UNIVERSAL Quantum_PAPR_Spares
Universal Quantum Air User Manual_2022 UKCA_1

Airflow Rate:

Low speed: 170 l/min (6+cfm)

High speed: 210 l/min (7.4+cfm)

Battery Type

Rechargeable Li-ion battery

Battery Duration:

9 hours (Standard battery, 170 l/min)

5-5 hours (Standard battery 210 l/min

15 hours (Extended battery 170l/min)

9 hours (Extended battery 210 l/min)

Battery Charge Time:

1 hour (Standard battery)

2 hours (Extended battery)

Battery Life

> 500 Charges

Filter Efficiency

> 99.97%

Alarms

Visual, Audio & Vibration

Standards

DIN EN 12941 TH3P R SL

Operating Relative Humidity

< 90%

Operating Temperature

-5ºC to + 55ºC

Storage Temperature

-20ºC to + 55ºC

Weight (Blower unit & battery)

1020g

Assigned Protection Factor (UK)

Nominal Protection Factor - Class TH3 (UK)

500

CE EN 12941 TH3P
